Detailed Diagnostics and Initial Analysis

The Thomson 55UD6406, a popular model from the TCL/Thomson F-series, is powered by the common 40-MT58CU-MAD4HG motherboard. This chassis frequently develops data corruption within its eMMC NAND flash memory, specifically affecting the boot partition or the EXT_CSD register. When this occurs, the software can no longer load the main operating system kernel, resulting in an infinite hang or a restart cycle on the initial startup splash screen. Our internal data indicates that over 90% of boot failures on this chassis can be traced back to this specific NAND issue.

Standard software recovery methods—such as the user-accessible “Update via USB” using a standard FAT32 drive—are often completely unresponsive in this corrupted state. The system is unable to initiate the secondary bootloader, which is required to read the USB interface. Therefore, a complete eMMC firmware fix requires direct hardware-level programming of the chip using a professional ISP programmer like the RT809H.

Verified Hardware Specifications

This table details the essential components and tested repair tool used for this specific validation. This is a 100% confirmed repair case for this technical data combination.

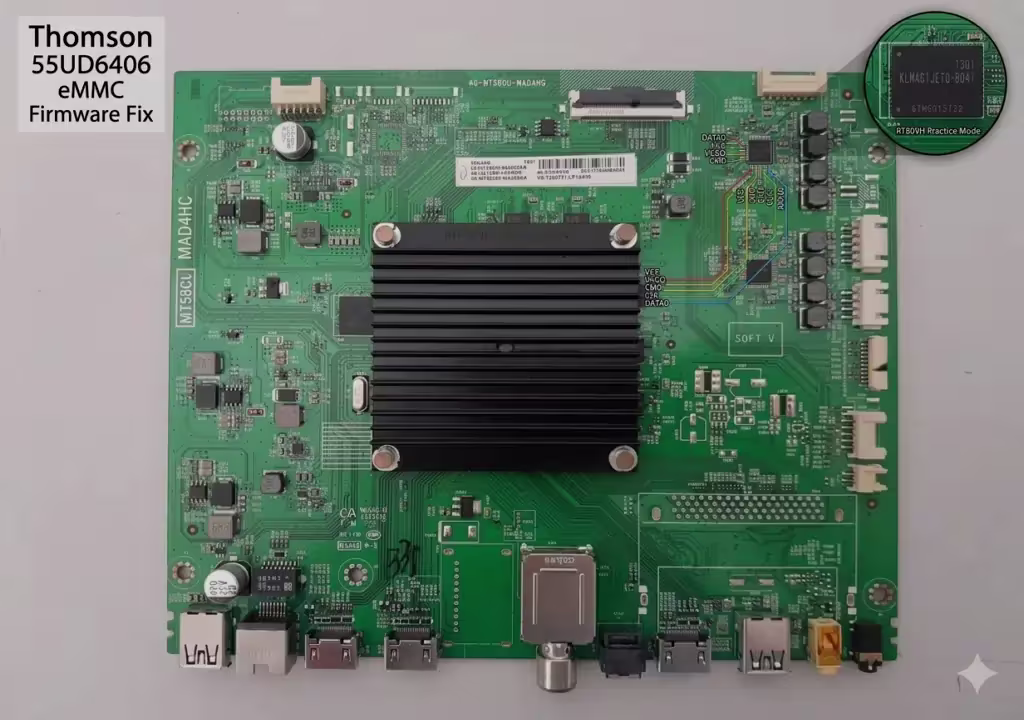

[Fig 1.0: Motherboard Component Mapping – eMMC location highlighted]

Complete Flashing and Verification Tutorial

For technicians new to MT58-series repair, direct programming can seem complex. Flashing the eMMC dump using the RT809H programmer is a precision process. Technicians must strictly adhere to signal integrity principles, especially regarding the length of the soldered wires. Following the programming step, always utilize the programmer’s “Verify” function. This essential step checks the flashed data against the dump file to prevent partition alignment issues that can leave the TV in its non-boot state despite a seemingly successful “Write” cycle.

RT809H ISP eMMC Pinout Termination Map

The safest way to repair this board is via **ISP (In-System Programming)**. This direct connection approach eliminates the substantial heat stress and risk of trace lifting associated with traditional BGA rework. By soldering thin wires to the verified termination points (CLK, CMD, and DATA0), we can interface directly with the KLMAG1JET0 chip while it is still on the board.

**CRITICAL SIGNAL INTEGRITY NOTE:** To prevent data signal corruption during the flash process, the spliced ISP wires **MUST NOT EXCEED 15CM IN LENGTH**. Failure to keep wires short will result in write failure, corrupted partition tables, or intermittent verify errors.

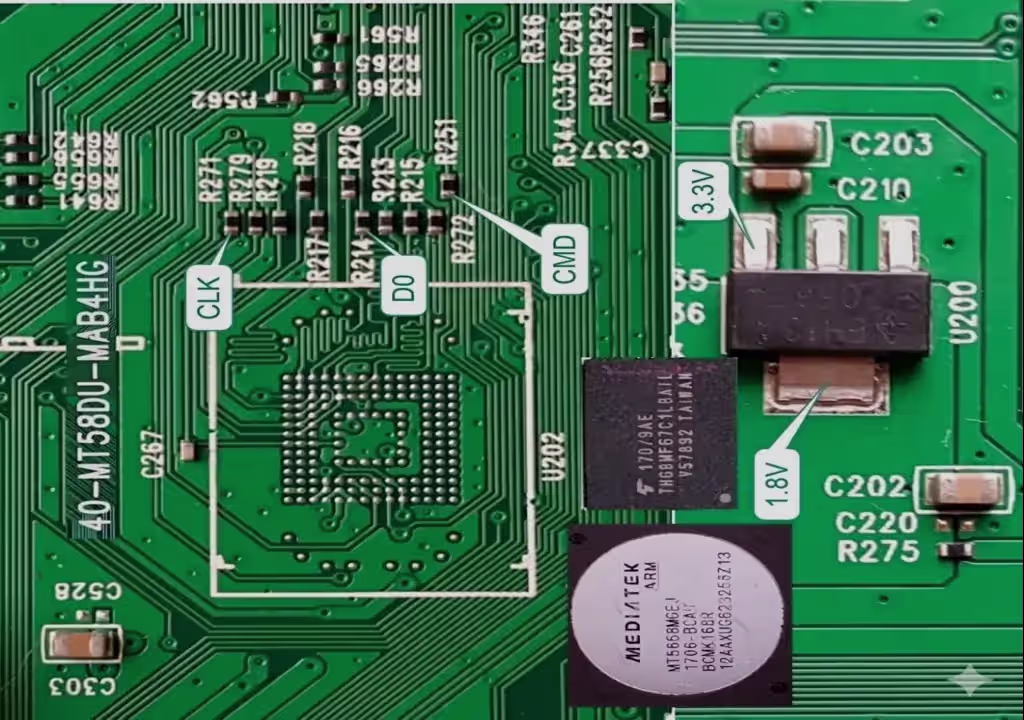

[Fig 2.0: Verified eMMC Termination Map – Click button below for high-res view]

Additional Resources and Internal Interlinking

If you require advanced troubleshooting or full voltage maps for this board, you can access the full Thomson Chassis Diagram (PDF). For comprehensive technical discussions on related TCL/Thomson series repairs, we highly recommend reviewing our complete Download THOMSON MODEL CHASSIS service manual & repair info for electronics experts..

For context, related F-series models like the Thomson UE32F6200AK are notorious for similar eMMC-driven data corruption issues, demonstrating that direct flashing is often the primary repair solution for these Smart TV platforms when software recovery is impossible.
