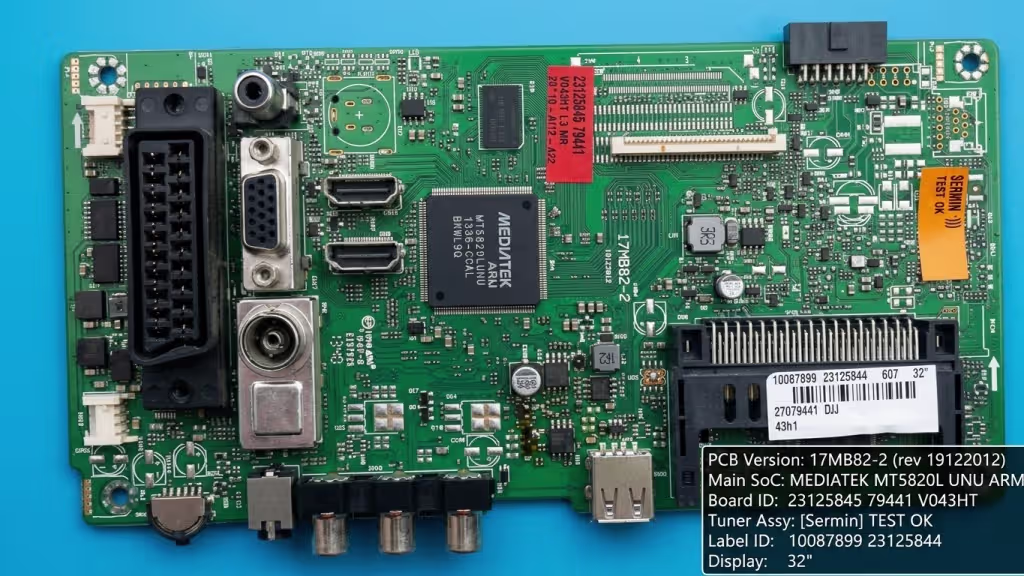

17MB82-2 Mainboard — Nevir NVR-7400-32-HD-N (Click image to zoom)

i Overview

This page provides a verified and tested SPI firmware dump for the Nevir NVR-7400-32-HD-N television equipped with the 17MB82-2 mainboard. The dump file targets the memory chips at positions U12 (25Q64FV) and U10 (25Q16BV), enabling technicians to resolve critical memory corruption issues, boot failures, and dead-set conditions using an SP8 universal programmer.

S Firmware Specifications

! Common Issues This Dump Resolves

• Dead TV — no power LED indicator, no standby response
• Stuck on boot logo — infinite restart loop, never reaches main menu
• Backlight active but no picture — blank screen with audio or no audio
• EEPROM corruption — erratic behavior, random settings reset
• Channel memory loss after every power cycle
• OSD menu freeze or partial display corruption
• No signal on all inputs despite functional tuner hardware
• Firmware update failure — bricked after interrupted software upgrade

C SPI Chip Locations

Below is the SPI chip location index on the 17MB82-2 mainboard. Identify U12 and U10 positions before desoldering for programmer access.

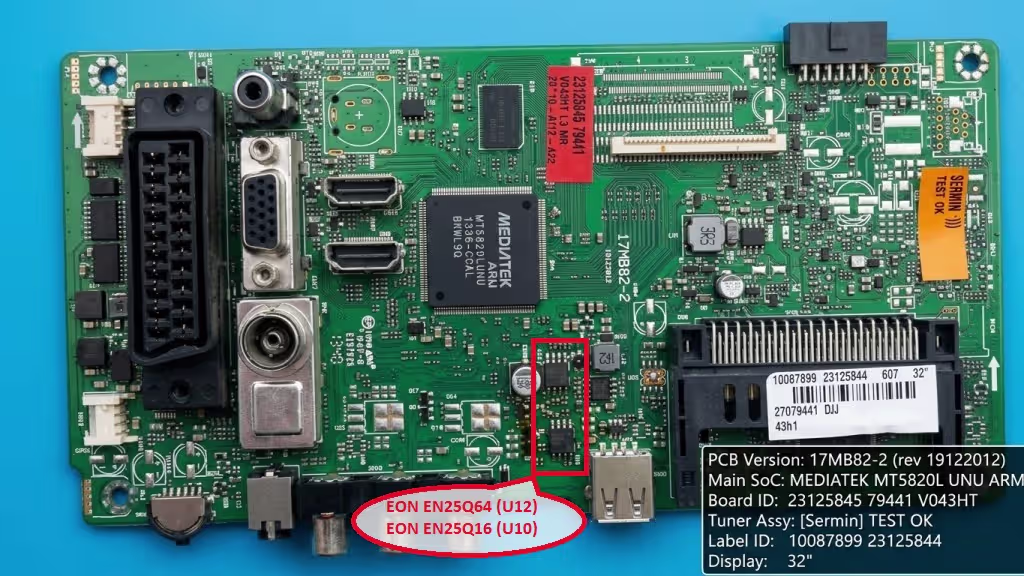

SPI Chip Location Index — U12 & U10 positions on 17MB82-2 (Click to zoom)

R Diagnostic & Repair Protocol

1. Visual Inspection — Examine the 17MB82-2 mainboard for burnt components, swollen capacitors, cracked solder joints, or physical damage near U12 and U10 areas.
2. Power Supply Verification — Confirm all voltage rails output correct values: 5V standby, 12V main, 3.3V logic. Use a multimeter at designated test points before proceeding.
3. Desolder SPI Chips — Using a hot-air rework station at 350-380 degrees Celsius, carefully remove the 25Q64FV (U12) and 25Q16BV (U10) chips. Apply flux generously to prevent pad damage.
4. Read Original Data — Place each chip on the SP8 programmer adapter. Attempt to read existing data and save as backup. Verify chip ID is correctly detected by the programmer software.
5. Erase Chips — Perform a full erase cycle on both SPI chips. Verify blank check passes before writing new data to prevent write errors.
6. Flash Firmware Dump — Load the downloaded BIN file into SP8 software. Write the firmware to the corresponding chip. Always match the correct file to the correct chip position (U12 or U10).
7. Verify Write — After flashing, run a verify operation to compare written data against the source file. A 100% match confirms successful programming.
8. Resolder Chips — Carefully solder each chip back to its original position on the 17MB82-2 board. Ensure correct pin 1 orientation. Clean flux residue with IPA.
9. Test & Calibrate — Reconnect the mainboard to the panel (VES315WNDL-01), power supply, and backlight driver. Power on and verify boot sequence, OSD menu access, channel scan, and all input ports function correctly.
