ASANO 32LF1130S Firmware Download (TP.MS3663S.PB818)
Confirmed Repair Symptoms:
- Red Light Indication (No Power On)
- Stuck on Boot/Logo Screen
- Reboot en Cycle (Restart Loop)
- No Boot / System Failure
Professional SPI Flash firmware dump for the ASANO 32LF1130S LED TV. This 100% verified repair file is specifically for boards using the TP.MS3663S.PB818 chipset and HV320FHB-N00 panel. Direct SPI programming via RT809H or CH341A is required for units that cannot boot into recovery, resolving common restart loop and logo freeze issues.
[Main Board: TP.MS3663S.PB818 – Click to Zoom]
Repair Tutorial / Demonstration
Hardware Specifications
| Brand | ASANO |
|---|---|
| Model | 32LF1130S |
| Main Board | TP.MS3663S.PB818 |
| LCD Panel | HV320FHB-N00 |
| SPI Flash IC | 25Q64JVSIQ (8MB) |

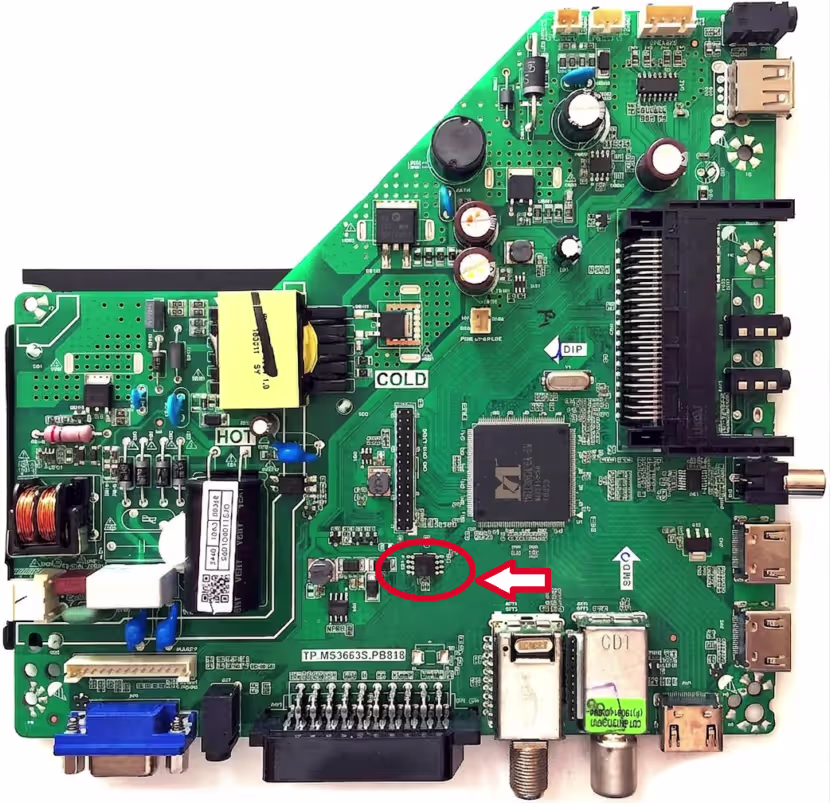

SPI Flash Location Reference
[SPI Flash: 25Q64JVSIQ Location – Click to Zoom]
Download Verified Firmware Dump
1st click opens verify link, 2nd click starts download.
Technician Activity Log
Admin_TV_TECH
April 2026
SUCCESS
Dump verified on ASANO 32LF1130S. Resolved reboot loop and logo freeze. Flashed via RT809H programmer.
Perfect file working 100% thx.
