Verified Firmware
Revolution E32A71BS EMMC Dump Download
Professional grade firmware for board HK.T.RT2842P639. Designed for repair specialists dealing with bootloops or system failures.

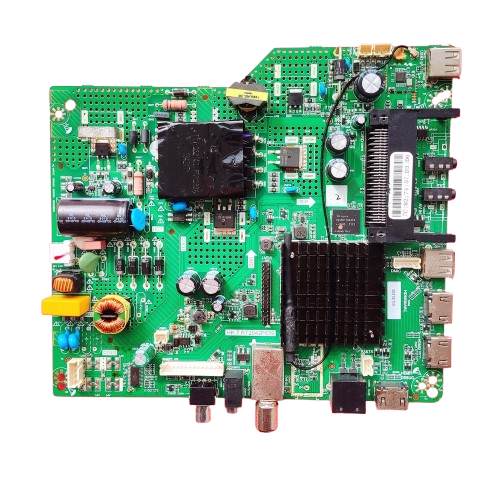

Main Board HK.T.RT2842P639 Layout (Click to enlarge)
TV Technical Specifications
| Brand / Category | Revolution / LED TV |
|---|---|
| Model | E32A71BS |
| Main Board | HK.T.RT2842P639 |
| EMMC Memory | KLM8G1GETF-B041 (8GB) |
| Panel Model | D32-A33 |
| File Size | 748 MB |
| Tested Tool | RT809H Programmer |
ISP Pinout & Flashing Procedure
Use the RT809H EMMC ISP method for the most efficient repair. Refer to the verified pinout diagram below for connection points.

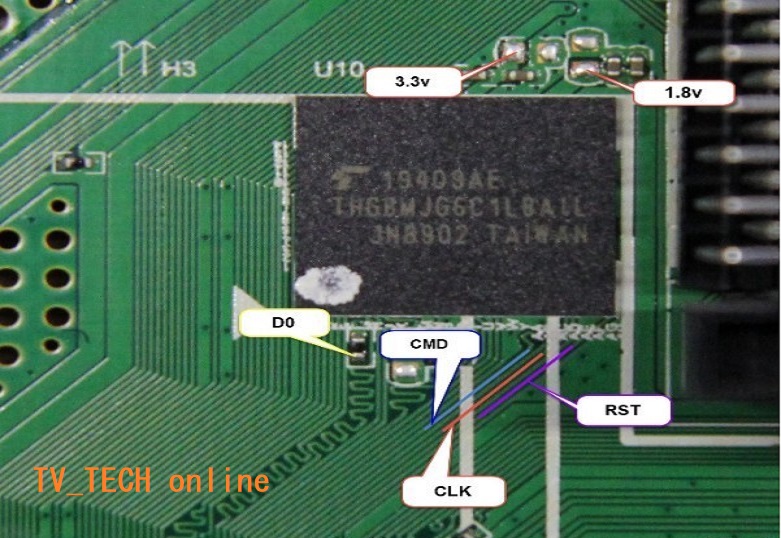

Verified EMMC ISP Pinout (Click to enlarge)
Firmware Download Section
Status: Free Download Available
1st click for secure link generation, 2nd click for direct download.
Repair Quick-Tips
- Backup original dump before erasing.
- CPU is beneath the radiator/heatsink.
- Check VCC/VCCQ (3.3V) for stability.
Programmer Setup
- Select “EMMC AUTO”
- Check EXT_CSD config
- Always Verify after Write
Warning: Ensure Panel D32-A33 matches your hardware to avoid image mirroring or black screen issues.
