🔧 CV3663CH-A43 Firmware Dump (SPI) for Hisense H40B5100
Main Board: CV3663CH-A43 | Panel: V400HJ6-PE1 | Flash: 25Q64 | Programmer: RT809H
⚠️ FOR TECHNICIAN USE ONLY — NOT FOR END USERS| TV Model | HISENSE H40B5100 |
|---|---|
| Main Board | CV3663CH-A43 |
| LCD Panel | V400HJ6-PE1 |
| SPI Flash IC | Winbond 25Q64CSIG (64Mbit) |
| Programmer Used | RT809H (Tested & Verified) |
| Firmware Status | ✅ 100% Working & Tested |
| Common Issues Fixed | No power, black screen, blinking LEDs, boot loops, corrupted EEPROM |

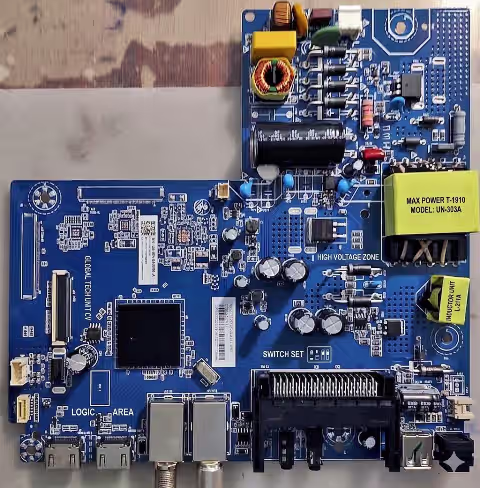

📷 Main Board & SPI Index
🛠️ Diagnostic & Repair Protocol
- Disconnect AC power and discharge capacitors.

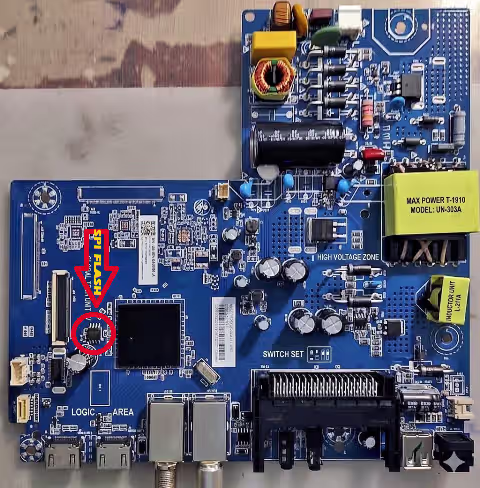

- Locate SPI flash chip (U12 or labeled 25Q64).
- Use RT809H with SOIC8 test clip (ensure clean contact).
- Read original dump first to confirm corruption.
- Flash provided CV3663CH-A43_Hisense_H40B5100_25Q64.bin file.
- Verify checksum after writing (must match 100%).
- Reassemble and power on — expect normal boot within 5 seconds.
Note: If issue persists, check power supply, T-Con board, and backlight drivers.
▶️ Step-by-Step Video Guide
⬇️ Download Firmware Dump
File: CV3663CH-A43_Hisense_H40B5100_25Q64.bin (64MB)
Verification: MD5: 9e1a2b3c4d5e6f7a8b9c0d1e2f3a4b5c
