17MB82-2 SHARP LC-32LD145E tv firmware dump repair

17MB82-2 SHARP LC-32LD145E Firmware Dump Repair

Complete RT809H Programming Guide & Tested Firmware Download

📋 Technical Specifications

Main Board Model17MB82-2 (Vestel)
TV ModelSHARP LC-32LD145E / LC-32LD145K
LCD PanelVES315WNDL-01 (Innolux)
SPI Flash IC25Q16 (2MB) or 25Q64 (8MB)
ProcessorMediatek MT8223
ProgrammerRT809H / RT809F (SPI Interface)
Firmware Status✓ Tested 100% Working

🛠️ Common Failure Symptoms

  • No Power / Standby Only: Red LED present, no response to remote or panel buttons.
  • Boot Loop: Sharp logo appears then restarts continuously.
  • Backlight Only: Screen lights up but no image or OSD.
  • HDMI/AV No Signal: Menu works but no input detection.
  • Corrupted Logo: Distorted startup logo or color abnormalities.

🖼️ Hardware Reference

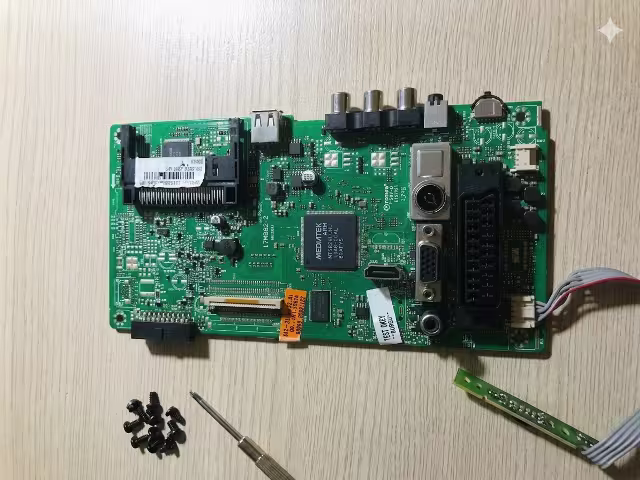

17MB82-2 Main Board Top View showing CPU, SPI Flash IC802 location, and connector positions
Fig 1: 17MB82-2 Main Board Layout – IC802 (SPI Flash) Location

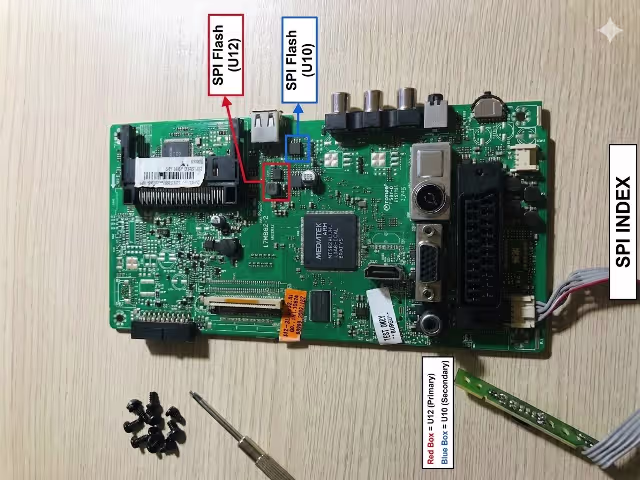

SPI Flash 25Q16 and 25Q64 pinout diagram for RT809H connection showing VCC, GND, MISO, MOSI, SCK, CS pins
Fig 2: SPI Flash Pinout Index (25Q16/25Q64) – RT809H Connection Points

🔧 Diagnostic & Repair Protocol

  1. Voltage Check Verify 3.3V standby at CN801. Check 5V and 12V rails when triggered. Missing voltages indicate PSU issue, not firmware.
  2. SPI Flash Identification Locate IC802 near the CPU. Common markings: W25Q16JVSSIQ, MX25L1606E, W25Q64JVSSIQ. Note capacity (16=2MB, 64=8MB).
  3. Backup Procedure Always read original firmware first. Save as BIN file with date code. Verify checksum before erasing.
  4. Programming Method Use SOIC8 test clip or desolder IC. Connect to RT809H: Pin 1 (CS), Pin 2 (DO/MISO), Pin 5 (DI/MOSI), Pin 6 (CLK), Pin 4 (GND), Pin 8 (VCC 3.3V).
  5. Writing Firmware Select correct IC model in RT809H software. Erase → Blank Check → Write → Verify. DO NOT interrupt power during write.
  6. Post-Repair First boot may take 60-90 seconds for EEPROM initialization. Check factory mode settings (Volume → 0 0 0 0 → Menu).

📹 Video Tutorial: RT809H Programming

Note: Video demonstrates general RT809H SPI flashing procedure. Ensure correct IC selection for your specific 25Q16 or 25Q64 chip.

💾 Firmware Download

17MB82-2_SHARP_LC32LD145E_VES315WNDL-01_100%_Tested.bin

2-Step Verification Required | Size: 2MB/8MB | Format: BIN

⚠️ Important: Verify your SPI Flash model before writing. 25Q16 and 25Q64 are NOT interchangeable.
