Firmware Overview
This page provides a free download of the CV59L-C firmware dump for the ARAGON TV-2401 LED television. The dump file has been extracted from a fully functional unit and verified for integrity. It is designed to restore the SPI flash memory contents when the original firmware has become corrupted, partially erased, or damaged due to power surges, failed software updates, or component-level failures.
The firmware is compatible with the CV59L-C universal LED TV main board paired with the Samsung LTM230HT10 23-inch Full HD LCD panel. The SPI memory chip used on this board is the Winbond 25Q32A (W25Q32), a 32-Megabit (4MB) serial NOR flash IC. Programming is performed via the RT809H universal programmer.

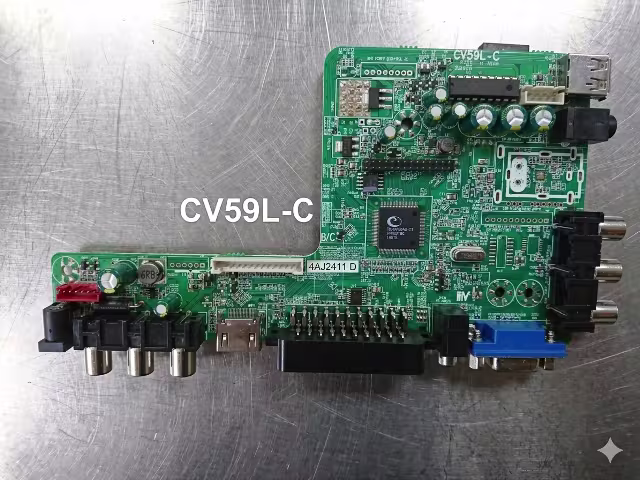

Hardware Specifications
| Parameter | Details |
|---|---|
| TV Model | ARAGON TV-2401 |
| Display Type | LED (Direct-lit) |
| Screen Size | 23 inch (58 cm) |
| Main Board | CV59L-C |
| LCD Panel | Samsung LTM230HT10 |
| Resolution | 1920 × 1080 (Full HD) |
| SPI Flash IC | Winbond 25Q32A (W25Q32) |
| Flash Capacity | 32 Mbit (4 MB) |
| Flash Package | SOP-8 |
| Programmer | RT809H |
| Firmware Status | Tested 100% Working |
SPI Flash Memory Location
The Winbond 25Q32A SPI flash IC is located on the CV59L-C main board near the main processor. It is an 8-pin SOP package and is labeled 25Q32 on the chip surface. Below is a reference image showing the SPI flash chip position on the board for identification during the desolder or in-circuit programming process.

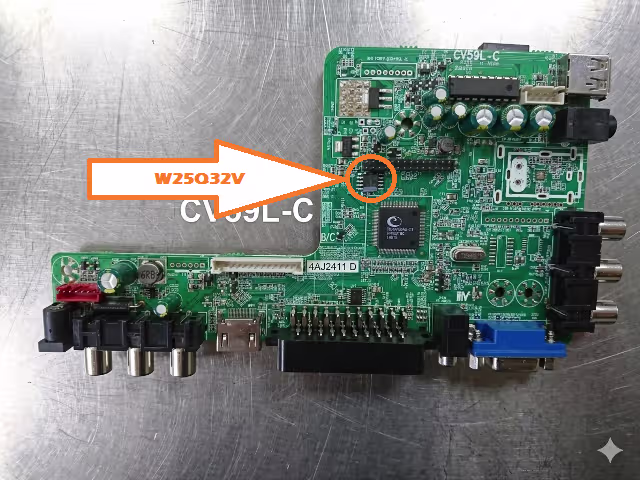

SPI Flash IC (25Q32A) location on CV59L-C main board — ARAGON TV-2401
Common Issues & Symptoms
The following problems are frequently encountered with the ARAGON TV-2401 equipped with the CV59L-C board and typically indicate SPI flash memory corruption requiring a firmware re-flash:
Reported Fault Symptoms
- Dead set / No power indicator: TV does not respond to power button; standby LED remains off despite confirmed good power supply output.
- Stuck on boot logo: TV powers on, displays the manufacturer or board logo, and freezes indefinitely without progressing to input source.
- Endless reboot loop: TV repeatedly starts up and restarts within seconds, never reaching a stable operating state.
- No display output (black screen with backlight): Backlight illuminates but no OSD, menu, or video signal is displayed on screen.
- Distorted or garbled OSD: On-screen display text and menu graphics appear corrupted, pixelated, or unreadable.
- HDMI / AV inputs not detected: All input sources show “No Signal” despite functional external devices connected.
- Audio present but no video: Sound output is normal but the screen remains black or shows artifacts.
- Software update failure: TV became inoperable after an interrupted or failed USB firmware update attempt.
- Remote control unresponsive: Infrared remote commands are not recognized; keypad buttons on the set may or may not function.
- Channel scan failure: Auto-tuning process hangs, crashes, or fails to save detected channels.
Diagnostic & Repair Protocol
Follow this step-by-step procedure to diagnose, extract, and re-program the SPI flash memory on the CV59L-C main board for the ARAGON TV-2401. Strict adherence to this protocol ensures successful repair and prevents further damage.
Phase 1 — Pre-Repair Diagnostics
Disassemble the TV and thoroughly inspect the CV59L-C main board for visible damage: bulging or leaking capacitors, burnt resistors, cracked solder joints, or scorched traces around the power regulation and processor areas.
Measure all output voltages from the power supply board with a multimeter. Confirm that 5V standby, 12V main, and any 3.3V or 1.8V rails are within ±5% tolerance before connecting to the main board.
Using the RT809H programmer, attempt to read the existing 25Q32A chip. If the read returns all 0xFF bytes or produces inconsistent reads across multiple attempts, the flash content is confirmed corrupted and a re-flash is required.
Phase 2 — Firmware Programming
Using a hot air rework station at 320–350°C with appropriate flux, carefully desolder the 25Q32A SOP-8 chip from the CV59L-C board. Clean residual solder from both the chip pads and the PCB footprint using solder wick.
Place the desoldered chip into the RT809H SOP-8 adapter. Select the W25Q32 / 25Q32A chip profile in the programmer software. Perform a full read and save the backup file — even if corrupted, retain it for future reference.
Execute a full chip erase operation. Verify the erase was successful by performing a blank check — the entire memory should read 0xFF.
Load the downloaded CV59L-C firmware dump file into the RT809H software. Write the file to the 25Q32A chip. After writing completes, perform a verify operation to confirm 100% data match between the file and the chip contents.
Resolder the programmed 25Q32A chip back onto the CV59L-C board. Reassemble the TV and power on. The set should boot normally to the initial setup screen. Perform a full functional test: check all inputs, channel scan, OSD navigation, audio output, and remote control response.
Video Repair Guide
Watch the detailed video walkthrough demonstrating the complete firmware dump and repair procedure for the CV59L-C main board. This visual guide covers chip identification, desoldering technique, programmer configuration, and post-flash verification.
Download Firmware Dump
CV59L-C firmware dump file for ARAGON TV-2401 LED — verified and ready for programming.
Related Firmware Downloads
Frequently Asked Questions
What SPI flash chip is used on CV59L-C for ARAGON TV-2401?
The CV59L-C main board for ARAGON TV-2401 uses a Winbond 25Q32A (W25Q32) SPI flash memory chip. It is a 32-Megabit (4MB) serial NOR flash in an SOP-8 package, responsible for storing the entire firmware including boot code, panel configuration, and user settings.
Which programmer is required to flash CV59L-C firmware?
The RT809H universal programmer is the recommended tool for reading and writing the 25Q32A SPI flash on the CV59L-C board. It provides reliable chip detection, accurate programming, and built-in verification. An SOP-8 test clip or adapter socket is also required.
Is this CV59L-C firmware dump tested and working?
Yes. This firmware dump has been tested 100% working on the ARAGON TV-2401 LED TV with the LTM230HT10 panel and CV59L-C main board. The dump was extracted from a known-good unit, verified via checksum comparison, and successfully programmed onto replacement and erased flash chips.
Can I use a clip adapter instead of desoldering the chip?
In-circuit programming with a SOIC-8 test clip is possible but not always reliable on the CV59L-C due to bus contention with the main processor. If in-circuit reading fails or produces inconsistent data, desoldering the chip is strongly recommended for a clean read/write operation.
